TCL 5.0HP Inverter Air Conditioner

The TCL TAC-48CHFA/FHI is a 5.0 HP floor-standing split air conditioner from TCL's PowerIN FH range, with an inverter rotary compressor and R410A refrigerant. It cools and heats, and runs on a single-phase 220-240 V, 50 Hz supply.

• Cools a large room. TCL rates it at 12310 W of cooling (3100 to 13040 W), with 1800 m3/h of air flow, for rooms of 50 to 80 m2.
• Heats too. A heat pump gives up to 13200 W of heating.
• Works with a generator. A 3-speed generator mode limits the power the unit draws.
• Quick to cool, steady after. A 30 second turbo setting starts cooling fast, and the inverter then holds the temperature precisely.
• Air that reaches the far wall. 3D airflow and long-distance air supply spread the air through the room.
• Cleans itself. A 3-step self-cleaning cycle is built in.

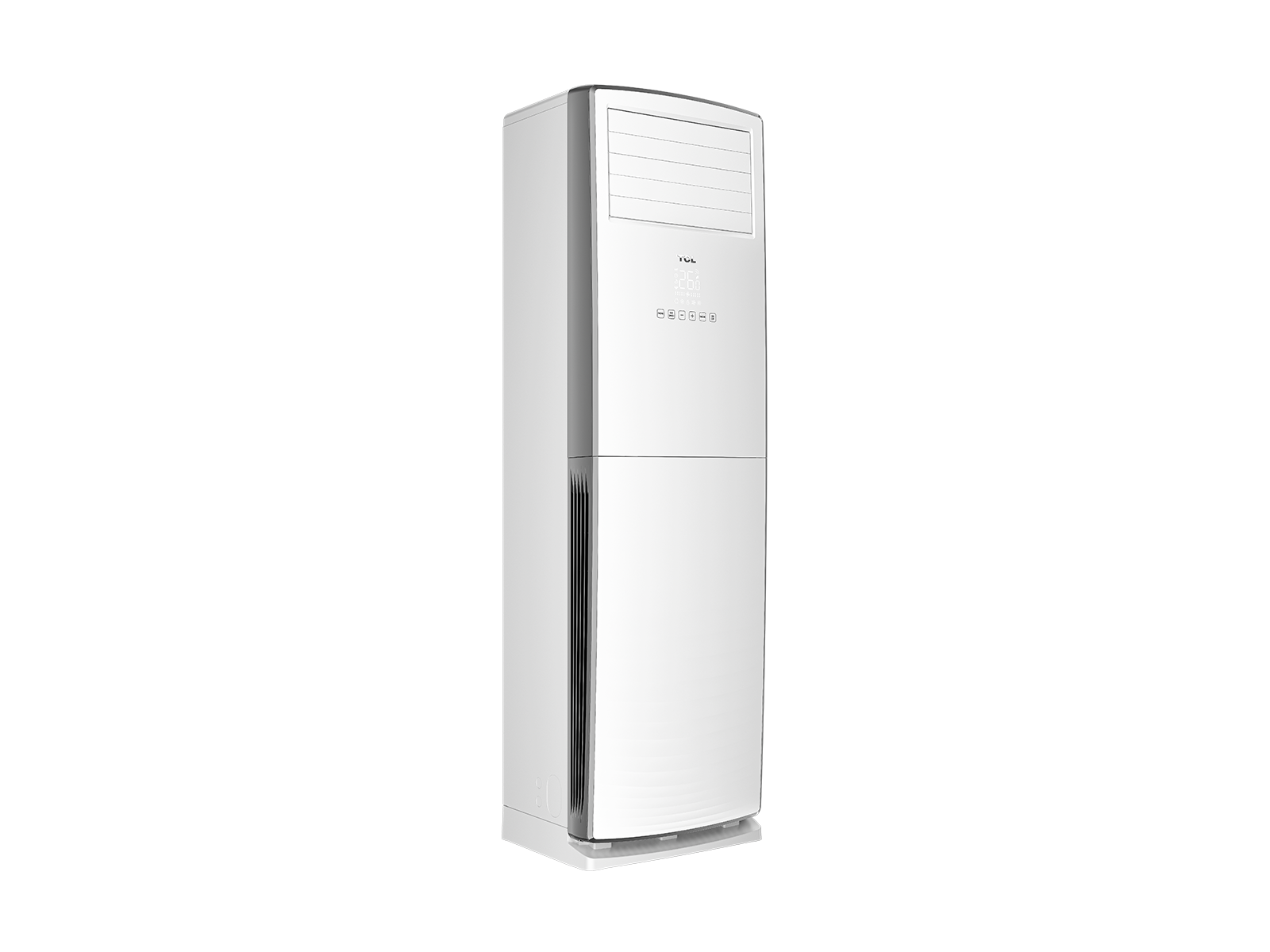

The indoor unit is white, stands 1775 mm tall, and needs only a single-phase supply.

Specifications

• Type: Floor-standing split, inverter, cooling and heating
• Cooling capacity: 12310 W (3100 to 13040 W)
• Heating capacity: 13200 W (2850 to 13200 W)
• Power input, cooling: 3800 W (500 to 5100 W)
• Air flow: 1800 m3/h
• Moisture removal: 4.2 litres/h
• Indoor sound power: 52 dB(A)
• Outdoor sound power: 63 dB(A)
• Refrigerant: R410A, 2.5 kg
• Compressor: Rotary
• Power supply: 220-240 V, 50 Hz, single phase (155 to 265 V)
• Suitable room: 50 to 80 m2
• Indoor unit size: 540 mm wide, 1775 mm high and 415 mm deep
• Indoor unit weight: 51 kg
• Outdoor unit size: 1005 mm wide, 910 mm high and 400 mm deep
• Outdoor unit weight: 72 kg
• Maximum pipe length: 15 m

These figures are taken from TCL's published specification for the TAC-48CHFA/FHI, which TCL publishes on its Turkey site.
